Your Professional LC HDD Pump Series Supplier
We are a certified manufacturer of mud pumps, plunger pumps, and fracturing pumps, supplying complete pump systems, accessories, and centrifuges for oil drilling, mining, and industrial use. With API 7K and ISO 9001 certification, advanced CNC machining, and full in-house testing, we deliver reliable equipment for high solids, high pressure, and harsh environments. Our products are widely applied in oil & gas drilling, mining slurry transport, environmental engineering, and high-pressure fracturing operations.
Quality Control
Multi-axis CNC machining and complete testing systems ensure consistent quality, verified performance, and full traceability for every critical component.
Global Market Experience
Strong performance in North America, Russia, and the Middle East supports reliable supply and service.
High-Quality Service
From pre-sales engineering analysis to installation, training, and after-sales maintenance, we help customers reduce risk, improve uptime, and extend equipment service life.
-

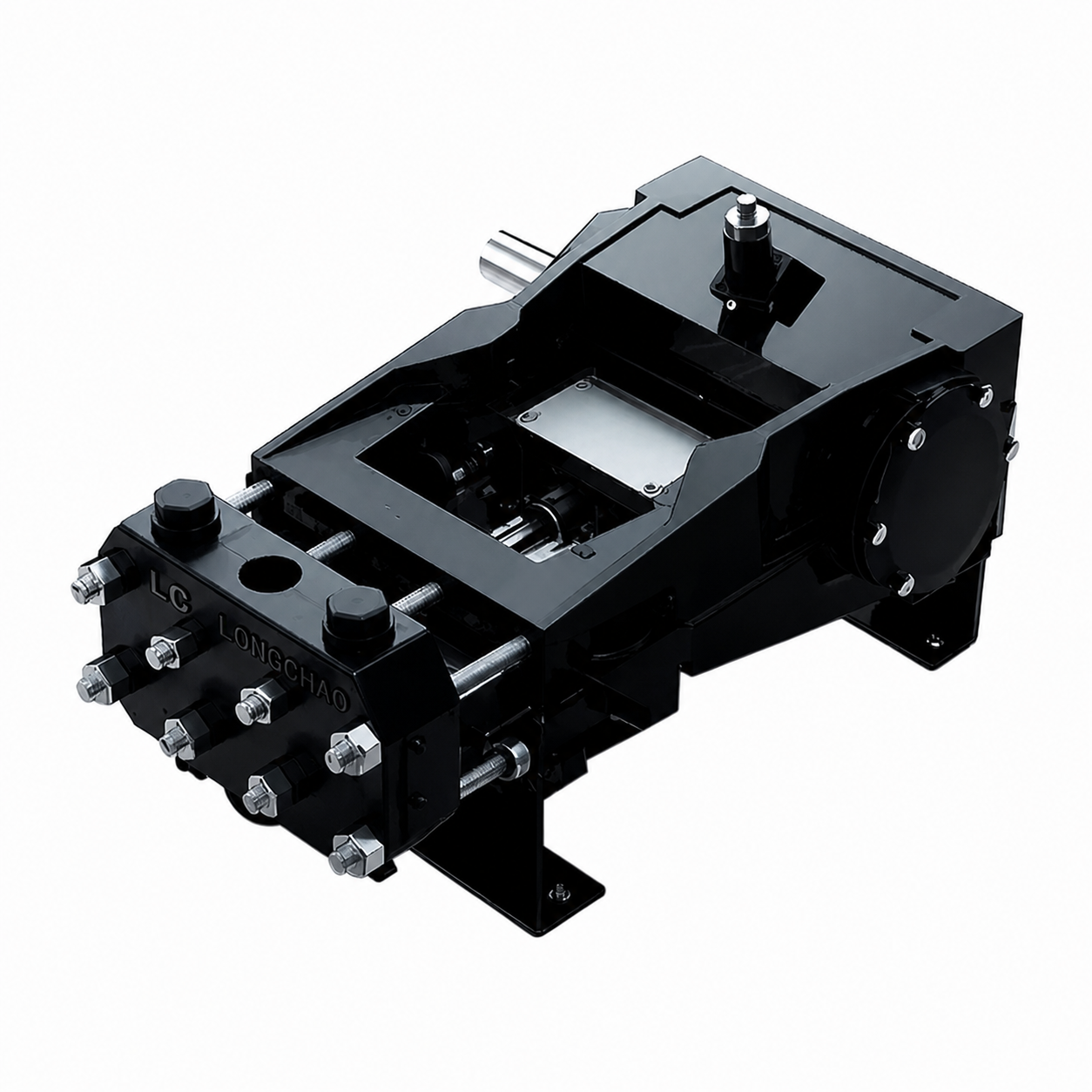

LC FR-50 GPM COMP HDD PumpLC FR-50 GPM COMP High-Pressure Plunger Pump: Superior Performance, Robust DurabilityThe LC FR-50 GPM COMP is a newly designed high-pressure triplex plunger pump, engineered specifically for -

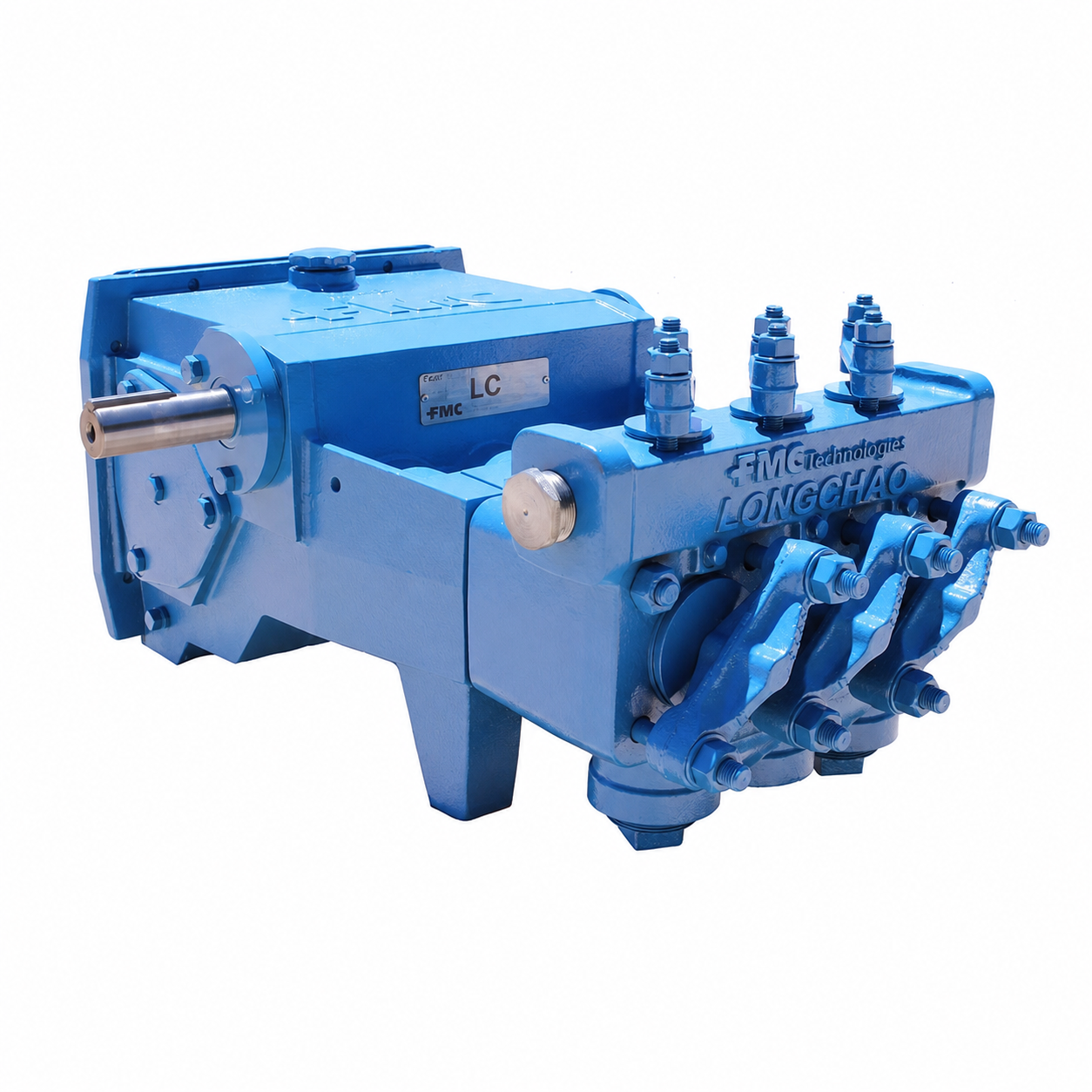

LC BEAN FR-70GPM HD HDD PumpThe LC FR-70 GPM HD high-pressure plunger pump is not just a power unit; it’s a critical partner in ensuring your high-efficiency production in demanding conditions. Every feature is designed to -
LC 0411 HDD PumpThe LC0411 Series Quadruplex Piston Pump, a new benchmark in pumping technology, embodies the essence of time-tested classic design combined with innovative breakthroughs in modern engineering. -
LC 0413 HDD PumpIn today’s demanding industrial environments, possessing a piston pump that can consistently deliver exceptional performance and unparalleled durability is crucial. -
LC FR-43 GPM HV HDD PumpIntroducing the LC FR-43 GPM HV Triplex Plunger Pump-a top-tier pumping solution meticulously engineered to handle extremely challenging industrial applications, particularly excelling in the -
LC FR-45GPM HD DI LH HDD PumpIntroducing the LC FR-45GPM HD DI LH Triplex Plunger Pump, meticulously crafted to meet the most stringent industrial applications. This pump, with its robust design and superior engineering -
LC FR-75 D GPM HDD PumpWe are proud to introduce the LC FR-75 GPM D, a masterpiece that represents a new height in high-performance triplex plunger pump technology. -
LC1224 HDD PumpLongchao Group proudly presents its newly upgraded LC1224 series triplex plunger pump. This pump is based on the robust foundation of the widely acclaimed FMC M1224 -
LC1424 HDD PumpThe LC1424 pump is engineered to withstand extremely harsh operating environments, particularly excelling at handling highly abrasive, high-viscosity, or solid-laden fluids. Its target application -
LC1432 HDD PumpThe LC1432 high-pressure plunger pump is an outstanding power unit specifically designed to tackle extreme industrial challenges. Drawing upon the mature design essence of the industry-recognized FMC -
LC1622HV HDD PumpIn the demanding realm of industrial applications, possessing a pump capable of tackling extreme challenges and consistently delivering exceptional performance is paramount. The LC1622HV is precisely -
LC1632 HDD PumpThe LC1632 is an advanced triplex plunger pump, drawing its design essence from the proven principles and powerful performance heritage of the acclaimed FMC 1632 series pumps. It is specifically
Parameter
|
Rated Power (Intermittent/Continuous) |
77 BHP (57.4 kW) / 62 BHP (46.2 kW) |
|
Max Working Pressure (3″ Plunger) |
850 PSIG (58.6 BAR) |
|
Max Flow (3″ Plunger @500RPM) |
137.5 GPM (520.5 LPM) |
|
Max Speed (Intermittent/Continuous) |
500 RPM / 400 RPM |
|
Stroke Length |
3.0 Inches (76.2 mm) |
|
Plunger Diameter |
3.0 Inches (76.2 mm) |
|
Suction Inlet Connection |
3″ NPT or 3″ Flange |
|
Discharge Outlet Connection |
2″ NPT or 2″ 1500# RTJ Flange |
|
Average Pump Weight |
Approx. 950 lbs (431 kg) |
|
Mechanical Efficiency |
90% (Typical Value) |
|
Design Standard Reference |
API-674 |
Types of LC HDD Pump Series
The LC HDD pump series produced by our company mainly include the following types:
LC FR-50 GPM COMP HDD Pump
The LC FR-50 GPM COMP can deliver a stable flow of up to 50 GPM and handle working pressures up to 700 PSI (approximately 48.2 Bar).
LC 0411 HDD Pump
The LC0411 Series Quadruplex Piston Pump, a new benchmark in pumping technology, embodies the essence of time-tested classic design combined with innovative breakthroughs in modern engineering.
LC FR-43 GPM HV HDD Pump
This pump model offers optional ceramic or ceramic-coated liners, as well as wear-resistant valve assemblies and other critical components.
Advantages of LC HDD Pump Series
Advanced Fluid End Design for Unmatched Durability
The LC HDD pump’s fluid end boasts a robust structure capable of enduring high pressure and corrosive fluids over extended periods. Its material selection and design are focused on minimizing stress concentration, ensuring long-term reliability in high-intensity operations.
High-Efficiency Power End Ensuring Stable and Reliable Operation
The power end plays a crucial role in smoothly and reliably transmitting power to the fluid end. The LC HDD pump’s power end design emphasizes mechanical efficiency and long-term operational reliability, typically featuring a high-strength cast iron frame and precisely manufactured drive components, ensuring mechanical efficiency of up to 90%.
Robust Sealing System Guaranteeing Excellent Leak-Free Integrity
Advanced packing and sealing technologies are crucial for preventing leaks, reducing maintenance, and ensuring safe operation. The LC HDD pump features a multi-layer V-packing (chevron) design, with options for spring-loaded or gland-adjusted methods, ensuring long-lasting sealing effectiveness.
User-Friendly and Easy-Maintenance Design
The LC HDD pump is designed with ease of maintenance in mind, featuring easily removable valve covers and packing glands, allowing users to quickly inspect, maintain, and replace wear parts. This effectively reduces operating costs and enhances equipment availability.
Mud Pumping In Oil And Gas Drilling
Efficiently and reliably pumps bentonite mud, polymer drilling fluids, and other drilling media in horizontal directional drilling (HDD) and conventional oil and gas drilling operations.
Mine Dewatering And Slurry Transportation
Suitable for underground mine dewatering, tailings transportation, and long-distance pumping of various high-concentration slurries.
Industrial Cleaning And High-Pressure Operations
Provides high-pressure water jet cleaning power for large equipment, pipelines, heat exchangers, and other industrial applications requiring high-pressure fluids.
Other High-Pressure, Abrasive Fluid Transportation
Widely used in chemical, metallurgical, municipal engineering, and other fields that demand extremely high wear resistance and reliability from pumps.
New Technology in the LC HDD Pump Series
Digital video surveillance system
Intelligent sensors can measure various parameters such as vibration, temperature and pressure and can be controlled via a central control system.
Improved design to reduce power consumption
New development trends include the use of lighter and more durable materials, new cylinder designs, and intelligent speed control.
Improvement of hydraulic efficiency
The reduced losses and improved fluid flow enabled an increase in the overall performance of the system.
Key Component Materials and Manufacturing Processes of LC HDD Pump Series
|
Component |
Main Material Options |
Key Manufacturing Process/Characteristics |
|
Fluid Cylinder |
Ductile Iron (A536 GR 80-55-06), Forged Carbon Steel (A105), Forged Stainless Steel (316L), Duplex Stainless Steel (2205), Nickel Aluminum Bronze |
Casting/Forging, Heat Treatment, Precision Machining, Optional Electroless Nickel Plating |
|
Valve Seat |
316 Stainless Steel, 17-4PH Stainless Steel |
Precision Machining, Surface Hardening Treatment |
|
Valve Disc/Plate |
Celcon®, Delrin®, 316 Stainless Steel, 17-4PH Stainless Steel |
Precision Forming/Machining |
|
Plunger |
Solid Ceramic (Alumina/Zirconia), Hard Faced Stainless Steel (300 series SS base, Colmonoy coating) |
Ceramic: Isostatic Pressing, High-temperature Sintering, Precision Grinding and Polishing; Hard Facing: Thermal Spraying (Plasma/HVOF), Precision Grinding |
|
Packing (Seals) |
Kevlar®/Teflon® braided packing, NBR, HNBR |
High-quality Fiber Braiding, Precision Compression Molding |
|
Suction/Discharge Flanges |
Carbon Steel, Stainless Steel (matching fluid cylinder) |
Forging/Plate Cutting, Precision Machining (RTJ ring groove) |
Packaging and Shipping
|
Packaging |
Standard export plywood case or carton. |
|
Shipping |
DHL, TNT, UPS, FEDEX, and EMS, SF. Air and sea transportation are also supported. |
Our Factory
Shijiazhuang LONGCHAO GROUP Machinery Co., Ltd. (DLSY) was founded in 2008 and is headquartered in Shijiazhuang, Hebei Province, China.
Our Certificates
FAQ
Longchao Group is one of the most professional LC hdd pump series manufacturers and suppliers in China, featured by quality products and low price. Please rest assured to buy CE approved LC hdd pump series made in China here from our factory. Contact us for quotation.
