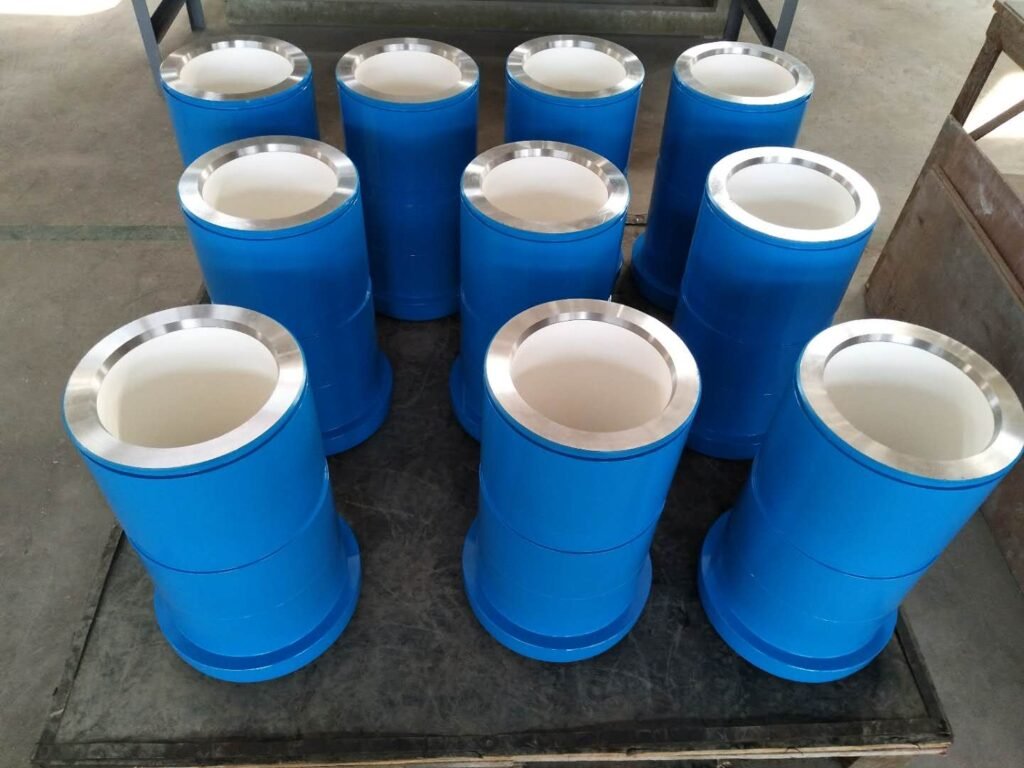

Mud Pump Ceramic Liner



Mud Pump Ceramic Liner



Mud Pump Ceramic Liner



Mud Pump Ceramic Liner



Mud Pump Ceramic Liner



AJAX Loading

Far far away, behind the word mountains, far from the countries Vokalia place.

eCommerce

Far far away, behind the word mountains, far from the countries Vokalia place.

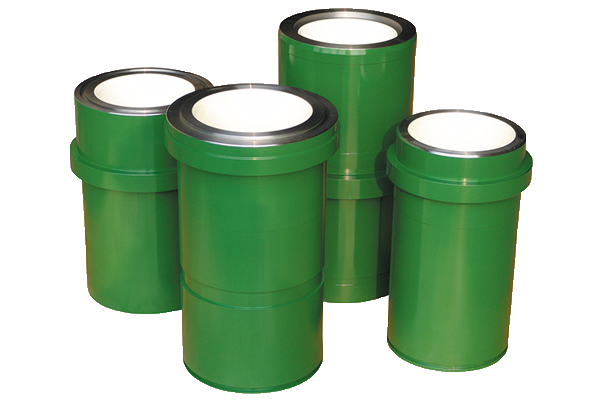

mud pump ceramic liner

UI Design

Far far away, behind the word mountains, far from the countries Vokalia place.

Quality Assurance

Far far away, behind the word mountains, far from the countries Vokalia place.

  1. Outer Hull: #45 steel forging,HB163-217;
  2. Inner Sleeve: zirconia or compound ceramic material
  3. HP design with shoulder-on-hull to prevent inner sleeve slippage;
  4. Surface finish4-8 RMS
  5. Service Life: over 4000 hours under normal working condition,5-10 times higher than bi-metal liner;
  6. Operating Pressure: 7500 PSI

Parameter of ceramic inner sleeve:

Item ZTA TZP
Composition Aluminum Oxide, Zirconia, Yttrium Oxide Zirconia, Yttrium Oxide
Volume Density (g/cm³) ≥4.25 ≥6.00
Bending Strength (MPa) ≥580 ≥800
Fracture Toughness (MPa·m1/2) ≥9 ≥10.00
Rockwell Hardness (HRA) ≥91 ≥91
Surface Roughness (µm) ≤0.20 ≤0.20
Compressive Strength (MPa) ≥3000 ≥3000
Wear Resistance 0.20 0.20
Thermal Shock Resistance ≥450℃ ≥450℃
Zirconia Content ≥25% ≥95%

Choose from API 7K certified zirconia ceramic liners engineered for high durability, precision fit, and extended service life. Compatible with all major pump brands.

Brand Model
BOMCO F500, F800/1000, F1300/1600, F1600HL, F2200HL
EMSCO F500, F800/1000, FB1300/1600, FC-1600, FC-2200
NATIONAL 7P50, 8P80, 9P100, 10P130, 12P160, 14P220
OILWELL A600PT, A850PT, A1100PT, A1400PT, A1700PT
GARDNER DENVER PAH, PJ8, PZ7, PZ8, PZ9, PZ10, PZ11, PZ11L
IDECO T500, T800, T1000, T1300, T1600
DRILLMEC 9T1000, 12T1600, 14T2200
WIRTH TPK1000, TPK1600, TPK2200
RUSSIAN PUMP 8T650, UNB600, NBT600, UNBT950, UNBT1180L
WEATHERFORD MP5, MP8, MP10, MP16
HONGHUA HHF500, HHF800/1000, HHF1300/1600, HHF1600HL, 3NB-1300F/1600F
RONGSHENG RSF500, RSF800/1000, RSF1300/1600
RG RGF500, RGF800/1000, RGF1300/1600
LANSHI 3NB1000C, 3NB1300C, 3NB1600
QZ 3NB800, 3NB1000, 3NB1300A, 3NB1600
